River ecosystem protection level

Freshwater (inland aquatic) realm

Nancy Job1 , Andrew Skowno1, 2 , Jock Currie1

1. South African National Biodiversity Institute

2. University of Cape Town

Published

December 5, 2025

Rivers are among the least protected ecosystems in South Africa. A whole catchment approach is needed to bend the curve on river conservation, as rivers are highly connected linear ecosystems that may be impacted by human activities throughout their catchment. Rivers within Protected Areas that were assessed to be Poorly Protected due to their ecological condition may be prime targets for strategic restoration.

The stunning Mtentu River forms the border of Mkabati Nature Reserve in the Eastern Cape. (© Nancy Job)
3%
of river ecosystem length
Well Protected
8%
of 222 river ecosystem types
Well Protected

Approximately 14% of the country’s river length occurs in protected areas. Of the rivers within protected areas, approximately 60% of these were assessed to be in a natural or near-natural ecological condition. This is much higher than the roughly 37% of rivers in a natural or near-natural ecological condition country-wide, however, this means that only 8% of river ecosystem types in South Africa are considered Well Protected, 13% Moderately Protected and 48% Poorly Protected, while 31% are considered Not Protected.

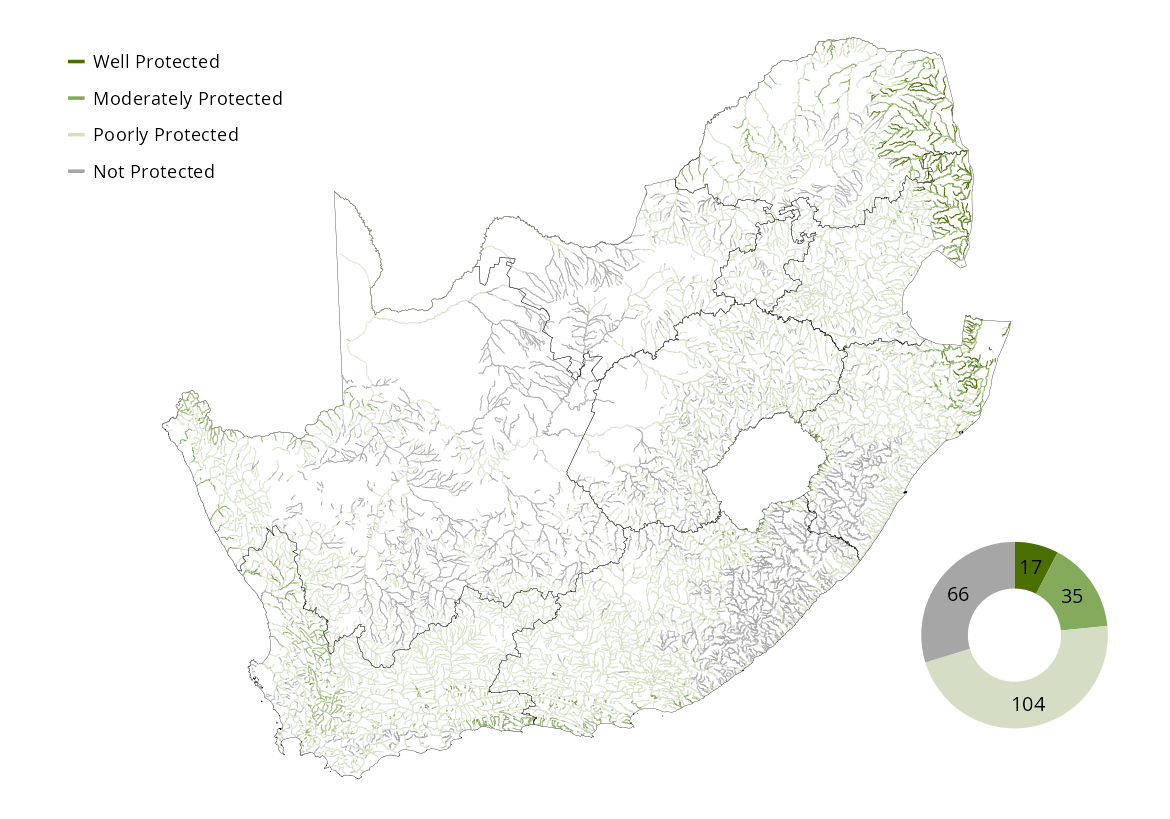

Figure 1. Ecosystem protection level for river ecosystem types. The inset graph shows the number of ecosystem types per protection level category.
Table 1. Ecosystem protection level of river ecosystem types.

The rivers of northern KwaZulu-Natal, Lowveld and Succulent Karoo are generally less threatened than other regions of the country. Protection levels are particularly low in the northern interior of the country, reflecting the spatial distribution of the current protected areas network.

In terms of river geomorphological zone, only 16% of the river ecosystem types within the lower foothill and mountain stream zones are Well Protected. More than half of lowland river ecosystem types are Not Protected (61%), reflecting the bias of the protected area network towards mountain versus lowland areas.

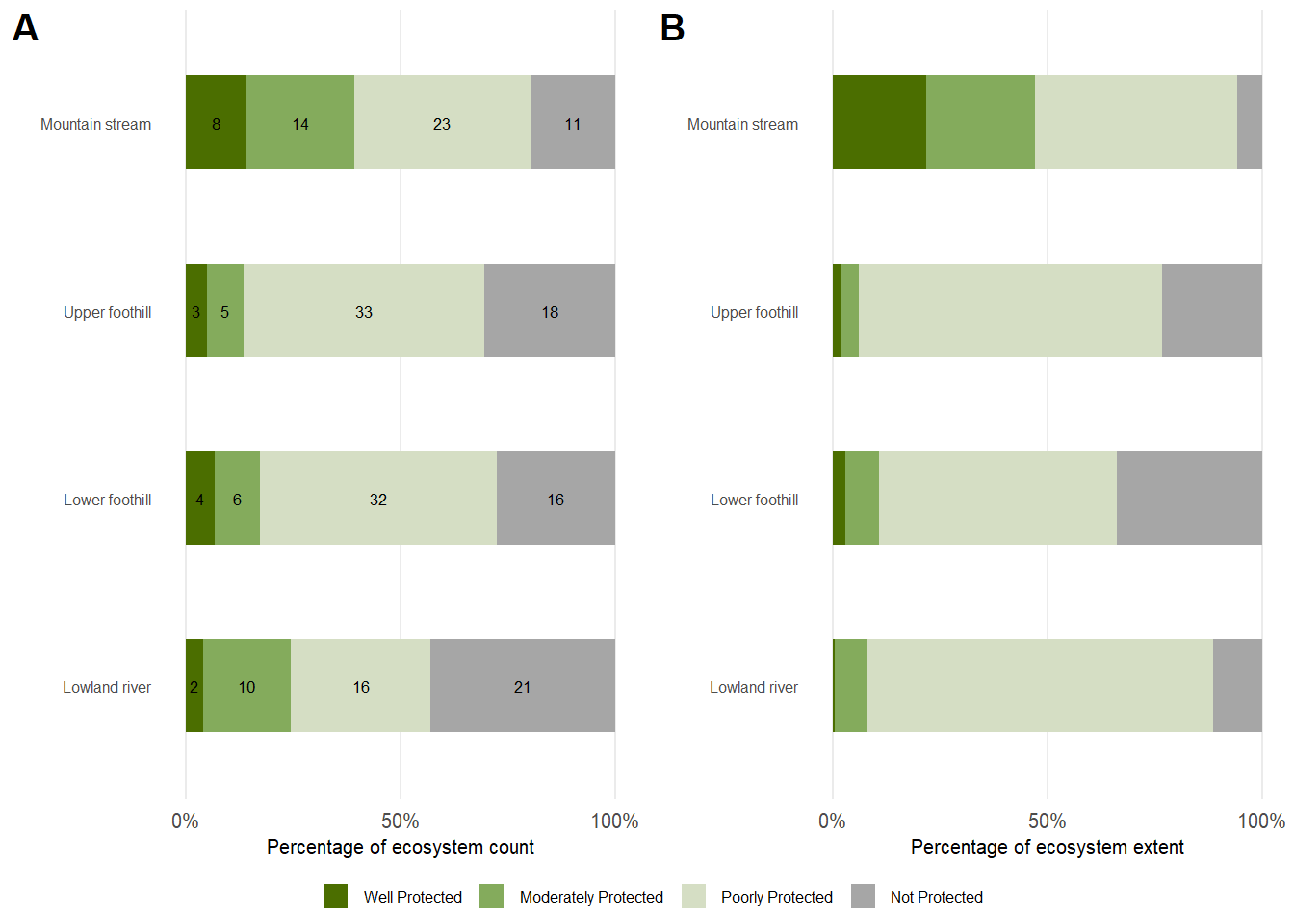

Figure 2. River ecosystem protection level within each geomorphological zone (slope category). (a) The percentage of ecosystem types per category (labelled with the number per type); (b) the percentage of river length (km) within each category, providing an indication of the relative extent of each category.
Table 2. Protection level of river ecosystem types summarised by geomorphological zone. Note that extent figures represent river length (km) and have been rounded.
Well Protected Moderately Protected Poorly Protected Not Protected
Mountain stream Count 8 14 23 11
Extent (km) 1 489 1 721 3 214 396
Upper foothill Count 3 5 33 18
Extent (km) 1 582 3 017 54 151 17 822
Lower foothill Count 4 6 32 16
Extent (km) 2 158 5 947 41 675 25 347
Lowland river Count 2 10 16 21
Extent (km) 102 1 612 16 890 2 400

Download the data here.

Intersection of ecosystem threat status and protection levels

Combining the headline indicators provides an additional perspective on the status of river ecosystems. There are 67 river ecosystem types that are both highly threatened and under-protected. Although the Cape fold mountains support multiple protected area types including mountain catchment area and nature reserves, as well as several OECM measures in progress, reports of worsening river ecological condition across the western cape identify this area as important for increased protection. Similarly, the upper Wilge catchment, the western region of the Eastern Cape and selected rivers of the Free State and Limpopo province are also candidates for focussed action,

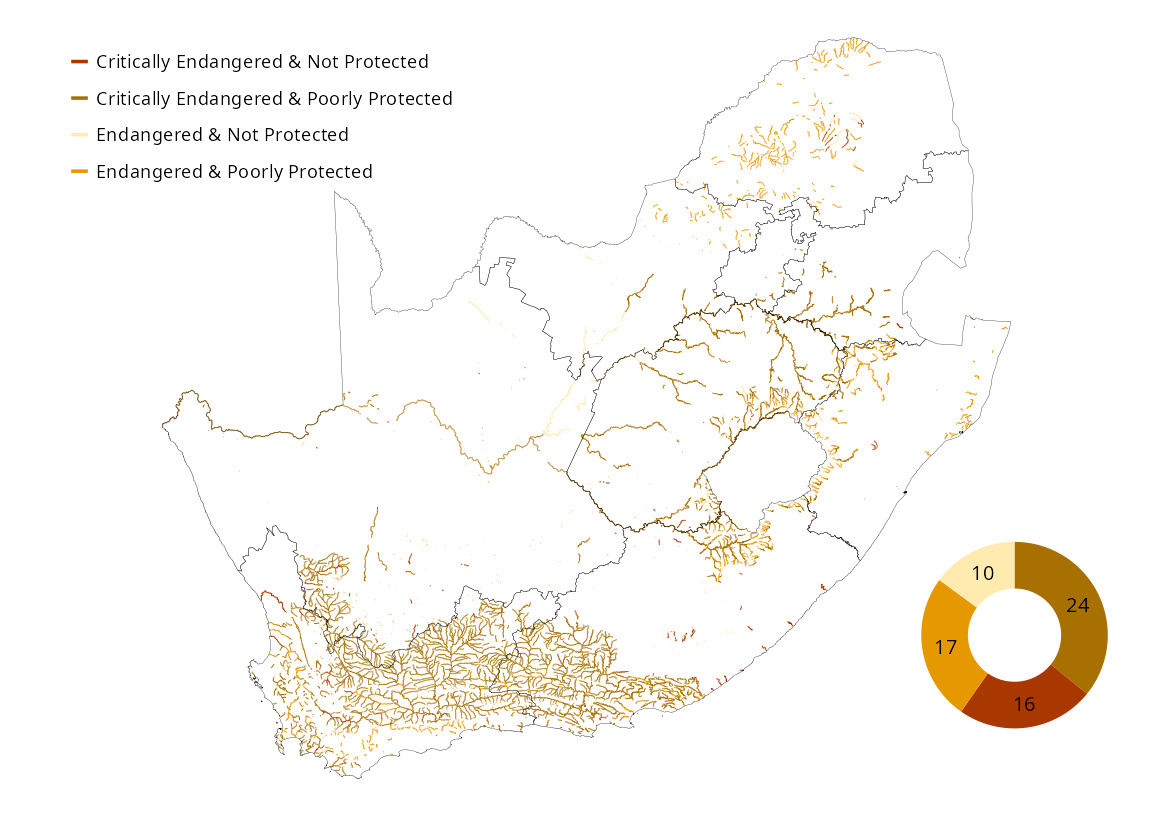

Figure 3. Highly threatened and under-protected river ecosystem types.
Table 3. The intersection of ecosystem threat status and protection level reveals the ecosystem types that require priority action.
Not Protected Poorly Protected Moderately Protected Well Protected Total
Critically Endangered 16 24 7 2 49
Endangered 10 17 14 3 44
Vulnerable 19 25 7 1 52
Least Concern 21 38 7 11 77
Total (n) 66 104 35 17 222

Approach

Ecosystem protection level is a headline indicator of the National Biodiversity Assessment. It measures the degree to which ecosystem types are represented within South Africa’s protected area network1. Read more about this indicator on the ecosystem protection level explainer page.

Key input layers include the South African protected areas database, the river ecosystem network, and river ecological condition assessment2.

While the 2018 assessment used a standard 20% target for freshwater ecosystems3, the current protection level target was adjusted to 30% in line with Target 3 of the Global Biodiversity Framework. This target is applied to each of the 122 river ecosystem types. Importantly, the current ecological condition of the river within the protected area is taken into consideration in the calculation, ensuring that effectiveness is accounted for. At least 30% of each river ecosystem type (i.e. the ecosystem target) needs to be in a natural or near natural ecological condition (ecological class A or B) to qualify in the Well Protected category. If this target was not met, the ecosystem type is categorised as Moderately Protected or lower, meaning that higher integrity rivers contribute more to meeting protection level targets than low integrity rivers.

Ecosystem types were assigned to one of four categories based on the percentage of the protection target met within the protected areas network, and scaled by ecological condition: Well Protected: 100% (or more) of a river ecosystem type’s target falls within the protected area network; but only rivers in an A and B condition are considered to contribute; Moderately Protected: 50% to 99% of a river ecosystem type’s target falls within the protected area network; and rivers in an A and B condition contribute 100%, rivers in a C and D condition contribute 30%, while E and F condition rivers contribute only 10%; Poorly Protected: 5% to 49% of a river ecosystem type’s target falls within the protected area network; and A and B condition rivers contribute 100%, C and D condition rivers contribute 30%, E and F condition rivers contribute 10%; Not Protected: less than 5% of a river ecosystem type’s target falls within the protected area network; and A and B condition rivers contribute 100%, C and D condition rivers contribute 30%, E and F condition rivers contribute 10%.

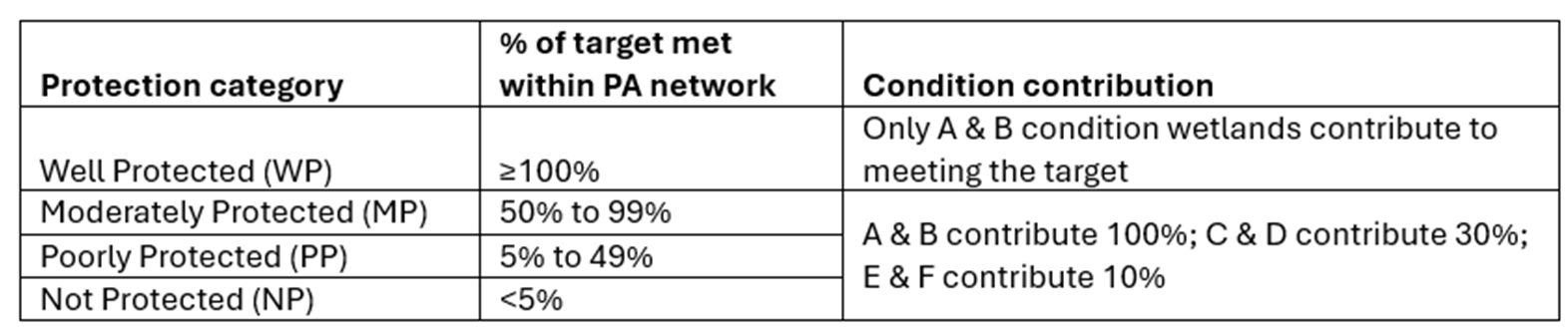

Table 4. Ecosystem protection level categories and the use of ecosystem condition data to moderate contribution to targets.

Changes in ecosystem protection level results since the 2018 assessment reflect revised targets and improved methodologies for global and national alignment, alongside genuine changes in protection and updates to river ecological condition.

Technical documentation

Code repository

Skowno, A.L. 2025. SANBI-NBA River ecosystem protection level [Source code]. GitHub repository available at https://github.com/askowno/EPL_riv

Key publications

Harris, L.R., Skowno, A.L., Holness, S.D., Sink, K.J., van Niekerk, L., van Deventer, H., Smith-Adao, L., Job, N., Khatieb, S., Monyeki, M. (in review). Indicators for tracking progress in effective, representative ecosystem protection.

References

1. Government of South Africa. 2003. National environmental management: Protected areas (act 57 of 2003).
2. South African Protected Areas Database. 2024. SAPAD_2024_IR_Q4.
3. Roux, D.J. et al. 2008. Improving cross-sector policy integration and cooperation in support of freshwater conservation. Conservation Biology 22: 1382–1387.
