of 190 ecosystem types
Well Protected
of 190 ecosystem types
Not protected
of the coastal extent
Well Protected
of the coastal extent
Not protected
Introduction
Ecosystem protection level (EPL) is one of the headline indicators of the National Biodiversity Assessment. This indicator measures the degree to which ecosystem types are represented in South Africa’s protected area network, and has been used as in national reporting since 2005.
After comparing the extent extent of each ecosystem type under protection relative to its predefined biodiversity target (ranging 16-32%), with heuristics regarding the ecological condition within protected areas, ecosystem types are assigned to one of four categories:
Well Protected (WP): the extent target for the ecosystem type is met or exceeded within the protected area network
Moderately Protected (MP): 50 - 99% of the extent target for the ecosystem type is met within the protected area network
Poorly Protected (PP): 5 - 49% of the extent target for the ecosystem type is met within the protected area network
Not Protected (NP): <5% of the extent target for the ecosystem type is met within the protected area network
For NBA 2025, the EPL indicator was calculated across all realms, and the results are summarised here for the 190 coastal ecosystem types that were assessed. For more details on EPL, see the general introduction to this headline indicator.
Coastal Ecosystem Protection Level
Proportionately, the coast is slightly more protected than the rest of the land and sea (Figure 2, Table 1). This is positive given the myriad of benefits provided by coastal ecosystems and their disproportionately impacted and threatened status.
Although 86% of coastal ecosystem types have some level of protection (163 of 190 types), only 19% are Well Protected, which accounts for 7% of the coastal extent (Figure 2, Table 1).
There is good progress in protecting coastal ecosystem types, but the national protected area network does need to be strengthened to afford protection to most of the coastal zone that is currently Poorly Protected or Not Protected (54% of types and 74% of extent), especially for coastal terrestrial and estuarine ecosystem types.
Ideally, coastal ecosystem types should have cross-realm protection in contiguous land-based and marine protected areas. Good examples of cross-realm protection are: Garden Route National Park and Tsitsikamma Marine Protected Area (MPA); iSimangaliso Wetland Park and MPA; De Hoop Nature Reserve and MPA; Addo Elephant National Park and MPA; and Namaqua National Park and MPA.

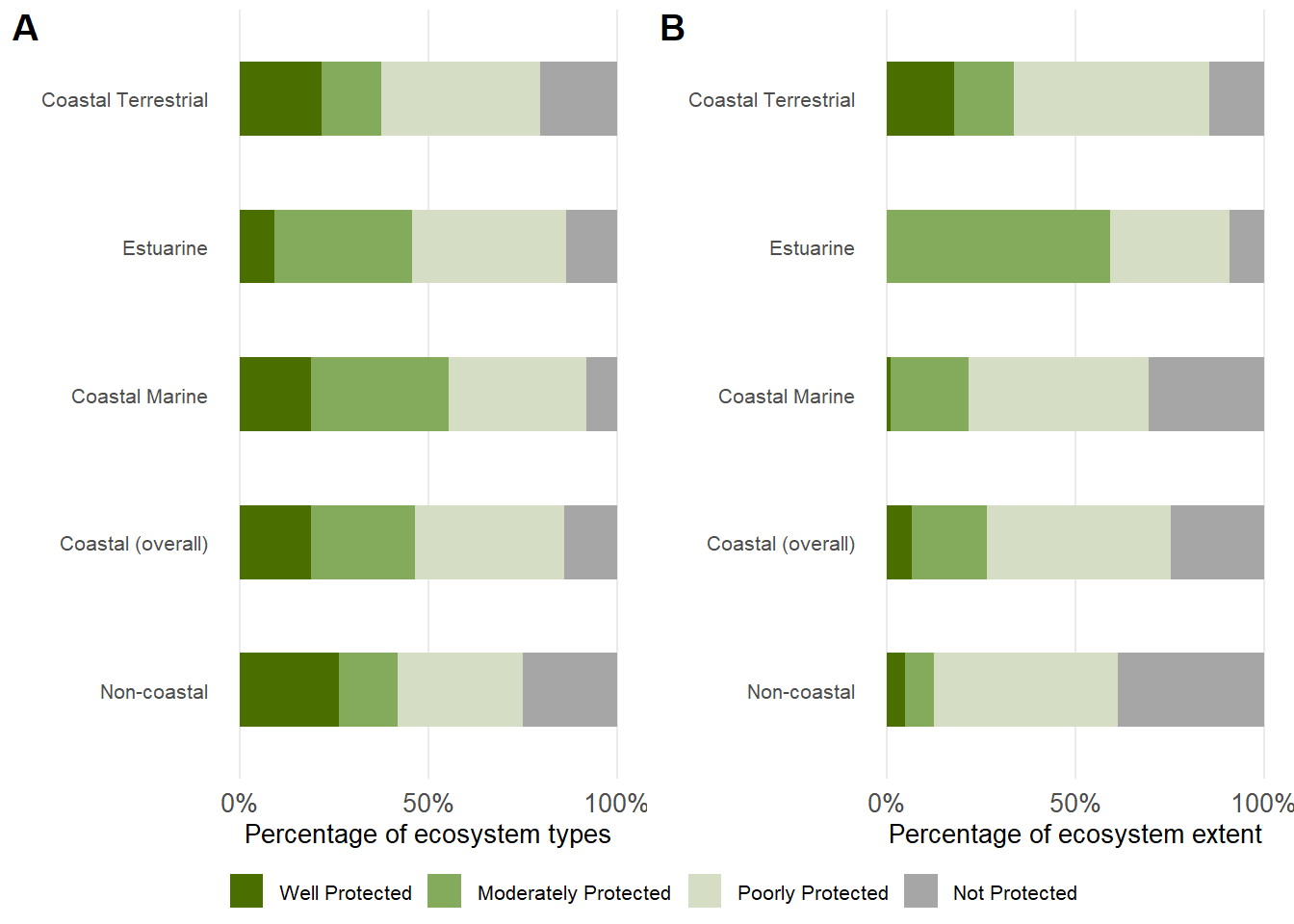

Coastal terrestrial ecosystem types are most Well Protected (22% of types, and 18% of extent); coastal marine ecosystem types have the largest percentage of ecosystem types in the top two categories, Well Protected and Moderately Protected (55% of types); and estuarine ecosystem types have the highest extent of protection across Well, Moderately and Poorly Protected (91% of extent) (Figure 2, Table 1).
In terms of Not Protected ecosystem types, the highest proportion of types is in the (coastal) terrestrial realm (20%), and the highest proportion of extent is in the (coastal) marine realm (31%) (Figure 2, Table 1).
| Realm | Sub-realm | WP | MP | PP | NP | Total |
|---|---|---|---|---|---|---|
| Coastal Terrestrial | Total | 18 | 13 | 35 | 17 | 83 |
| Coastal Terrestrial | Semi-coastal vegetation | 8 | 5 | 16 | 7 | 36 |
| Coastal Terrestrial | Coastal vegetation | 10 | 8 | 19 | 10 | 47 |
| Estuarine | Total | 2 | 8 | 9 | 3 | 22 |
| Coastal Marine | Total | 16 | 31 | 31 | 7 | 85 |
| Coastal Marine | Shore | 9 | 13 | 13 | 2 | 37 |
| Coastal Marine | Inner shelf and river influenced | 7 | 18 | 18 | 5 | 48 |
| Coastal (overall) | Total | 36 | 52 | 75 | 27 | 190 |
| Non-coastal | Total | 121 | 71 | 153 | 115 | 460 |
| Realm | Sub-realm | WP | MP | PP | NP | Total |
|---|---|---|---|---|---|---|
| Coastal Terrestrial | Total | 21.7 | 15.7 | 42.2 | 20.5 | 100 |
| Coastal Terrestrial | Semi-coastal vegetation | 22.2 | 13.9 | 44.4 | 19.4 | 100 |
| Coastal Terrestrial | Coastal vegetation | 21.3 | 17.0 | 40.4 | 21.3 | 100 |
| Estuarine | Total | 9.1 | 36.4 | 40.9 | 13.6 | 100 |
| Coastal Marine | Total | 18.8 | 36.5 | 36.5 | 8.2 | 100 |
| Coastal Marine | Shore | 24.3 | 35.1 | 35.1 | 5.4 | 100 |
| Coastal Marine | Inner shelf and river influenced | 14.6 | 37.5 | 37.5 | 10.4 | 100 |
| Coastal (overall) | Total | 18.9 | 27.4 | 39.5 | 14.2 | 100 |
| Non-coastal | Total | 26.3 | 15.4 | 33.3 | 25.0 | 100 |
| Realm | Sub-realm | WP | MP | PP | NP | Total |
|---|---|---|---|---|---|---|
| Coastal Terrestrial | Total | 17.9 | 15.7 | 51.7 | 14.7 | 100 |
| Coastal Terrestrial | Semi-coastal vegetation | 31.8 | 19.5 | 41.0 | 7.6 | 100 |
| Coastal Terrestrial | Coastal vegetation | 9.1 | 13.3 | 58.5 | 19.2 | 100 |
| Estuarine | Total | 0.1 | 59.0 | 31.6 | 9.3 | 100 |
| Coastal Marine | Total | 1.1 | 20.5 | 47.8 | 30.6 | 100 |
| Coastal Marine | Shore | 18.9 | 40.7 | 40.2 | 0.2 | 100 |
| Coastal Marine | Inner shelf and river influenced | 0.7 | 20.1 | 48.0 | 31.2 | 100 |
| Coastal (overall) | Total | 6.6 | 19.9 | 48.7 | 24.8 | 100 |
| Non-coastal | Total | 4.8 | 7.7 | 48.7 | 38.9 | 100 |
Because the targets and assessment methodologies have changed in the realm assessments since the NBA 2018, the results are not comparable between the two assessments as a time series. However, the latest results do show that the South African coastal zone is less protected than was previously reported.
| Realm | Subrealm | Ecosystem Type | Protection Level |
|---|---|---|---|
| Terrestrial | Coastal vegetation | Cape Seashore Vegetation | Well Protected |
| Terrestrial | Coastal vegetation | Goukamma Dune Thicket | Well Protected |
| Terrestrial | Coastal vegetation | Langebaan Dune Strandveld | Well Protected |
| Terrestrial | Coastal vegetation | Mangrove Forest | Well Protected |
| Terrestrial | Coastal vegetation | Northern Coastal Forest | Well Protected |
| Terrestrial | Coastal vegetation | Potberg Sandstone Fynbos | Well Protected |
| Terrestrial | Coastal vegetation | Southern Coastal Forest | Well Protected |
| Terrestrial | Coastal vegetation | Subtropical Dune Thicket | Well Protected |
| Terrestrial | Coastal vegetation | Subtropical Seashore Vegetation | Well Protected |
| Terrestrial | Coastal vegetation | Swamp Forest | Well Protected |
| Terrestrial | Semi-coastal vegetation | Goukamma Strandveld | Well Protected |
| Terrestrial | Semi-coastal vegetation | Kogelberg Sandstone Fynbos | Well Protected |
| Terrestrial | Semi-coastal vegetation | Namib Lichen Fields | Well Protected |
| Terrestrial | Semi-coastal vegetation | Peninsula Sandstone Fynbos | Well Protected |
| Terrestrial | Semi-coastal vegetation | Peninsula Shale Fynbos | Well Protected |
| Terrestrial | Semi-coastal vegetation | Southern Afrotemperate Forest | Well Protected |
| Terrestrial | Semi-coastal vegetation | Tsitsikamma Sandstone Fynbos | Well Protected |
| Terrestrial | Semi-coastal vegetation | Umtiza Forest Thicket | Well Protected |
| Terrestrial | Coastal vegetation | Cape Flats Dune Strandveld | Moderately Protected |
| Terrestrial | Coastal vegetation | Hangklip Sand Fynbos | Moderately Protected |
| Terrestrial | Coastal vegetation | Kasouga Dune Thicket | Moderately Protected |
| Terrestrial | Coastal vegetation | Maputaland Coastal Belt | Moderately Protected |
| Terrestrial | Coastal vegetation | Namaqualand Coastal Duneveld | Moderately Protected |
| Terrestrial | Coastal vegetation | Overberg Dune Strandveld | Moderately Protected |
| Terrestrial | Coastal vegetation | Peninsula Granite Fynbos | Moderately Protected |
| Terrestrial | Coastal vegetation | Saldanha Limestone Strandveld | Moderately Protected |
| Terrestrial | Semi-coastal vegetation | Albany Mesic Thicket | Moderately Protected |
| Terrestrial | Semi-coastal vegetation | Cape Winelands Shale Fynbos | Moderately Protected |
| Terrestrial | Semi-coastal vegetation | De Hoop Limestone Fynbos | Moderately Protected |
| Terrestrial | Semi-coastal vegetation | Maputaland Wooded Grassland | Moderately Protected |
| Terrestrial | Semi-coastal vegetation | Southwestern Strandveld | Moderately Protected |
| Terrestrial | Coastal vegetation | Agulhas Limestone Fynbos | Poorly Protected |
| Terrestrial | Coastal vegetation | Agulhas Sand Fynbos | Poorly Protected |
| Terrestrial | Coastal vegetation | Algoa Sandstone Fynbos | Poorly Protected |
| Terrestrial | Coastal vegetation | Hamburg Dune Thicket | Poorly Protected |
| Terrestrial | Coastal vegetation | Hartenbos Dune Thicket | Poorly Protected |
| Terrestrial | Coastal vegetation | Lambert's Bay Strandveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Namaqualand Heuweltjie Strandveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Namaqualand Inland Duneveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Namaqualand Sand Fynbos | Poorly Protected |
| Terrestrial | Coastal vegetation | Namaqualand Seashore Vegetation | Poorly Protected |
| Terrestrial | Coastal vegetation | Namaqualand Strandveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Peninsula Shale Renosterveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Pondoland-Ugu Sandstone Coastal Sourveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Saldanha Flats Strandveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Saldanha Granite Strandveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Southern Cape Dune Fynbos | Poorly Protected |
| Terrestrial | Coastal vegetation | St Francis Dune Thicket | Poorly Protected |
| Terrestrial | Coastal vegetation | Transkei Coastal Belt | Poorly Protected |
| Terrestrial | Coastal vegetation | Western Gariep Plains Desert | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Albertinia Sand Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Atlantis Sand Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Eastern Coastal Shale Band Vegetation | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Elands Forest Thicket | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Elim Ferricrete Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Garden Route Shale Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Grassridge Bontveld | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Grootbos Strandveld | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Hopefield Sand Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Knysna Sand Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Lourensford Alluvium Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Overberg Sandstone Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Potberg Ferricrete Fynbos | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | South Eastern Coastal Thornveld | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | Southeastern Strandveld | Poorly Protected |
| Terrestrial | Semi-coastal vegetation | St Francis Strandveld | Poorly Protected |
| Terrestrial | Coastal vegetation | Alexander Bay Coastal Duneveld | Not Protected |
| Terrestrial | Coastal vegetation | Canca Limestone Fynbos | Not Protected |
| Terrestrial | Coastal vegetation | Garden Route Granite Fynbos | Not Protected |
| Terrestrial | Coastal vegetation | Groot Brak Dune Strandveld | Not Protected |
| Terrestrial | Coastal vegetation | KwaZulu-Natal Coastal Belt Grassland | Not Protected |
| Terrestrial | Coastal vegetation | Namib Seashore Vegetation | Not Protected |
| Terrestrial | Coastal vegetation | Northern Richtersveld Yellow Duneveld | Not Protected |
| Terrestrial | Coastal vegetation | Richtersveld Coastal Duneveld | Not Protected |
| Terrestrial | Coastal vegetation | Richtersveld Sandy Coastal Scorpionstailveld | Not Protected |
| Terrestrial | Coastal vegetation | Southern Richtersveld Yellow Duneveld | Not Protected |
| Terrestrial | Semi-coastal vegetation | Bethelsdorp Bontveld | Not Protected |
| Terrestrial | Semi-coastal vegetation | Cape Flats Sand Fynbos | Not Protected |
| Terrestrial | Semi-coastal vegetation | Gouritz Valley Thicket | Not Protected |
| Terrestrial | Semi-coastal vegetation | Humansdorp Shale Renosterveld | Not Protected |
| Terrestrial | Semi-coastal vegetation | Mossel Bay Shale Renosterveld | Not Protected |
| Terrestrial | Semi-coastal vegetation | Motherwell Karroid Thicket | Not Protected |
| Terrestrial | Semi-coastal vegetation | Sardinia Forest Thicket | Not Protected |
| Estuarine | Estuaries | Cool Temperate Small Fluvially Dominated | Well Protected |
| Estuarine | Estuaries | Warm Temperate Small Fluvially Dominated | Well Protected |
| Estuarine | Estuaries | Cool Temperate Estuarine Lagoon | Moderately Protected |
| Estuarine | Estuaries | Cool Temperate Small Temporarily Closed | Moderately Protected |
| Estuarine | Estuaries | Subtropical Estuarine Lake | Moderately Protected |
| Estuarine | Estuaries | Subtropical Small Temporarily Closed | Moderately Protected |
| Estuarine | Estuaries | Tropical Estuarine Lake | Moderately Protected |
| Estuarine | Estuaries | Warm Temperate Estuarine Bay | Moderately Protected |
| Estuarine | Estuaries | Warm Temperate Estuarine Lake | Moderately Protected |
| Estuarine | Estuaries | Warm Temperate Small Temporarily Closed | Moderately Protected |
| Estuarine | Estuaries | Cool Temperate Arid Predominantly Closed | Poorly Protected |
| Estuarine | Estuaries | Cool Temperate Estuarine Lake | Poorly Protected |
| Estuarine | Estuaries | Cool Temperate Large Fluvially Dominated | Poorly Protected |
| Estuarine | Estuaries | Cool Temperate Large Temporarily Closed | Poorly Protected |
| Estuarine | Estuaries | Subtropical Large Fluvially Dominated | Poorly Protected |
| Estuarine | Estuaries | Subtropical Large Temporarily Closed | Poorly Protected |
| Estuarine | Estuaries | Subtropical Predominantly Open | Poorly Protected |
| Estuarine | Estuaries | Warm Temperate Large Temporarily Closed | Poorly Protected |
| Estuarine | Estuaries | Warm Temperate Predominantly Open | Poorly Protected |
| Estuarine | Estuaries | Cool Temperate Predominantly Open | Not Protected |
| Estuarine | Estuaries | Subtropical Estuarine Bay | Not Protected |
| Estuarine | Estuaries | Warm Temperate Large Fluvially Dominated | Not Protected |
| Marine | Inner shelf and river influenced | Agulhas Inner Shelf Reef | Well Protected |
| Marine | Inner shelf and river influenced | Delagoa Sandy Inner Shelf | Well Protected |
| Marine | Inner shelf and river influenced | Kosi Coral Community | Well Protected |
| Marine | Inner shelf and river influenced | Leadsman Coral Community | Well Protected |
| Marine | Inner shelf and river influenced | Namaqua Mid Shelf Fossils | Well Protected |
| Marine | Inner shelf and river influenced | Sodwana Coral Community | Well Protected |
| Marine | Inner shelf and river influenced | St Lucia Sandy Inner Shelf | Well Protected |
| Marine | Shore | Agulhas Island | Well Protected |
| Marine | Shore | Delagoa Mixed Shore | Well Protected |
| Marine | Shore | Delagoa Very Exposed Rocky Shore | Well Protected |
| Marine | Shore | Natal Boulder Shore | Well Protected |
| Marine | Shore | Natal Delagoa Dissipative Intermediate Sandy Shore | Well Protected |
| Marine | Shore | Natal Delagoa Intermediate Sandy Shore | Well Protected |
| Marine | Shore | Natal Delagoa Reflective Sandy Shore | Well Protected |
| Marine | Shore | Natal Exposed Rocky Shore | Well Protected |
| Marine | Shore | Southern Benguela Dissipative Sandy Shore | Well Protected |
| Marine | Inner shelf and river influenced | Agulhas Inner Shelf Mosaic | Moderately Protected |
| Marine | Inner shelf and river influenced | Agulhas Sandy Inner Shelf | Moderately Protected |
| Marine | Inner shelf and river influenced | Aliwal Shoal Reef Complex | Moderately Protected |
| Marine | Inner shelf and river influenced | Durnford Mid Shelf Reef Complex | Moderately Protected |
| Marine | Inner shelf and river influenced | Eastern Agulhas Bay | Moderately Protected |
| Marine | Inner shelf and river influenced | KZN Bight Muddy Inner Shelf | Moderately Protected |
| Marine | Inner shelf and river influenced | KZN Bight Muddy Shelf Edge | Moderately Protected |
| Marine | Inner shelf and river influenced | Kei Fluvial Fan | Moderately Protected |
| Marine | Inner shelf and river influenced | Kei Reef Mosaic | Moderately Protected |
| Marine | Inner shelf and river influenced | Namaqua Sandy Inner Shelf | Moderately Protected |
| Marine | Inner shelf and river influenced | Port St Johns Inner Shelf Mosaic | Moderately Protected |
| Marine | Inner shelf and river influenced | Port St Johns Muddy Mid Shelf | Moderately Protected |
| Marine | Inner shelf and river influenced | Port St Johns Muddy Shelf Edge | Moderately Protected |
| Marine | Inner shelf and river influenced | St Lucia Sandy Mid Shelf | Moderately Protected |
| Marine | Inner shelf and river influenced | Wild Coast Inner Shelf Mosaic | Moderately Protected |
| Marine | Inner shelf and river influenced | uThukela Mid Shelf Mosaic | Moderately Protected |
| Marine | Inner shelf and river influenced | uThukela Mid Shelf Mud Coarse Sediment Mosaic | Moderately Protected |
| Marine | Inner shelf and river influenced | uThukela Outer Shelf Muddy Reef Mosaic | Moderately Protected |
| Marine | Shore | Agulhas Boulder Shore | Moderately Protected |
| Marine | Shore | Agulhas Dissipative Intermediate Sandy Shore | Moderately Protected |
| Marine | Shore | Agulhas Dissipative Sandy Shore | Moderately Protected |
| Marine | Shore | Agulhas Exposed Rocky Shore | Moderately Protected |
| Marine | Shore | Agulhas Intermediate Sandy Shore | Moderately Protected |
| Marine | Shore | Agulhas Very Exposed Stromatolite Rocky Shore | Moderately Protected |
| Marine | Shore | Cape Boulder Shore | Moderately Protected |
| Marine | Shore | Cape Exposed Rocky Shore | Moderately Protected |
| Marine | Shore | Cape Island | Moderately Protected |
| Marine | Shore | Cape Very Exposed Rocky Shore | Moderately Protected |
| Marine | Shore | Natal Mixed Shore | Moderately Protected |
| Marine | Shore | Natal Very Exposed Rocky Shore | Moderately Protected |
| Marine | Shore | Southern Benguela Dissipative Intermediate Sandy Shore | Moderately Protected |
| Marine | Inner shelf and river influenced | Agulhas Kelp Forest | Poorly Protected |
| Marine | Inner shelf and river influenced | Agulhas Muddy Mid Shelf | Poorly Protected |
| Marine | Inner shelf and river influenced | Cape Bay | Poorly Protected |
| Marine | Inner shelf and river influenced | Cape Kelp Forest | Poorly Protected |
| Marine | Inner shelf and river influenced | Cape Rocky Inner Shelf | Poorly Protected |
| Marine | Inner shelf and river influenced | Cape Sandy Inner Shelf | Poorly Protected |
| Marine | Inner shelf and river influenced | Durnford Inner Shelf Reef Complex | Poorly Protected |
| Marine | Inner shelf and river influenced | False and Walker Bay | Poorly Protected |
| Marine | Inner shelf and river influenced | KZN Bight Deep Shelf Edge | Poorly Protected |
| Marine | Inner shelf and river influenced | KZN Bight Mid Shelf Mosaic | Poorly Protected |
| Marine | Inner shelf and river influenced | KZN Bight Outer Shelf Mosaic | Poorly Protected |
| Marine | Inner shelf and river influenced | KZN Bight Sandy Inner Shelf | Poorly Protected |
| Marine | Inner shelf and river influenced | Namaqua Kelp Forest | Poorly Protected |
| Marine | Inner shelf and river influenced | Namaqua Muddy Mid Shelf Mosaic | Poorly Protected |
| Marine | Inner shelf and river influenced | Namaqua Sandy Mid Shelf | Poorly Protected |
| Marine | Inner shelf and river influenced | Southern KZN Inner Shelf Mosaic | Poorly Protected |
| Marine | Inner shelf and river influenced | Trafalgar Reef Complex | Poorly Protected |
| Marine | Inner shelf and river influenced | Western Agulhas Bay | Poorly Protected |
| Marine | Shore | Agulhas Exposed Stromatolite Rocky Shore | Poorly Protected |
| Marine | Shore | Agulhas Mixed Shore | Poorly Protected |
| Marine | Shore | Agulhas Reflective Sandy Shore | Poorly Protected |
| Marine | Shore | Agulhas Sheltered Rocky Shore | Poorly Protected |
| Marine | Shore | Agulhas Stromatolite Mixed Shore | Poorly Protected |
| Marine | Shore | Agulhas Very Exposed Rocky Shore | Poorly Protected |
| Marine | Shore | Cape Mixed Shore | Poorly Protected |
| Marine | Shore | Namaqua Exposed Rocky Shore | Poorly Protected |
| Marine | Shore | Namaqua Mixed Shore | Poorly Protected |
| Marine | Shore | Namaqua Sheltered Rocky Shore | Poorly Protected |
| Marine | Shore | Namaqua Very Exposed Rocky Shore | Poorly Protected |
| Marine | Shore | Southern Benguela Intermediate Sandy Shore | Poorly Protected |
| Marine | Shore | Southern Benguela Reflective Sandy Shore | Poorly Protected |
| Marine | Inner shelf and river influenced | KZN Bight Mid Shelf Reef Complex | Not Protected |
| Marine | Inner shelf and river influenced | Namaqua Muddy Sands | Not Protected |
| Marine | Inner shelf and river influenced | Orange Cone Inner Shelf Mud Reef Mosaic | Not Protected |
| Marine | Inner shelf and river influenced | Orange Cone Muddy Mid Shelf | Not Protected |
| Marine | Inner shelf and river influenced | St Helena Bay | Not Protected |
| Marine | Shore | Cape Sheltered Rocky Shore | Not Protected |
| Marine | Shore | Natal Delagoa Dissipative Sandy Shore | Not Protected |
Technical documentation
Github repositories
Coastal synthesis: https://github.com/lrharris/nba2025_coast/
Terrestrial EPL assessment: https://github.com/askowno/EPL_terr
Estuarine EPL assessment: https://github.com/askowno/EPL_est
Marine EPL assessment:
Data availability
The following datasets are available for download:
Recommended citation
Harris, L.R., Besseling, N., Sink, K.J., Skowno, A.L., & Van Niekerk, L. 2025. Ecosystem Protection Level. National Biodiversity Assessment 2025. South African National Biodiversity Institute. http://nba.sanbi.org.za/.
