A function to create horizontal bar plots and donut plots. The function expects that there is a coloumn of groups (e.g. ecosystem function groups, taxa etc), with one group value per row, and then several columns of the protection level, threat status, or condition of the groups with values representing either the number or percentage/ extent of groups within each category. These columns should be named according the to conventions in the nbaR::NBA_categories example list.
Usage
nba_plot(
DF,
GROUPS,
COLS,
CHRT = c("bar", "donut"),
NUM = FALSE,
LAB,
GRP = FALSE,
SAVE = NULL,
SCALE_TEXT = 1
)Arguments
- DF
The data frame that contains the information
- GROUPS
The categorized variables (ecosystem functional group, taxa, etc)
- COLS
The categories to describe the variables (protection level, threat status, condition, etc). You can use any tidyselect method to select these columns e.g. 2:4/ Endangered:Vulnerable/ c(Well Protected,Moderately Protected,Poorly Protected,Not Protected) etc
- CHRT
A choice of either "bar" or "donut" plot
- NUM
A choice to show numbers in the plot, False to show no numbers
- LAB
The x axis label of the plot
- GRP
A choice of whether or not to plot the donut graphs by group, TRUE will plot a donut plot for each group.
- SAVE
The name of the output file that will be saved to the output folder. If you do not have an outputs folder you will be prompted to make one.
- SCALE_TEXT
scale the sizes of the plot text to fit your intended output. currently set at 1 as default. If you want to save it to 8 by 6 cm, set it to 0.5.
Details
Please look at the example datasets NBA_example_thr_plot and NBA_example_pro_plot to see the correct structure for the data. Please note that both of these datasets have the same structure, whether it will be used to make a bar or donut plot is irrelevant. This function will plot the data as either a bar or donut plot depending on what you require. You can also decide if you want the donut plot to be split by ecosystem functional group or not (e.g one donut plot per functional group) and choose ifyou want the number of ecosystems to be displayed within the plot.
The name of the groups column is irrelevant, but the categories must be spelled correctly (there is a list of the standard spellings/ cases of NBA categories named nbaR::NBA_categories in this package, which can be accessed for reference).
Examples
bar_plot <- nba_plot(NBA_example_thr_data,
`OVERALL types`,
2:5,
CHRT = "bar",
NUM = TRUE,
LAB = "Percentage of ecosystem types",
SAVE = NULL)
bar_plot
#> Warning: Removed 1 row containing missing values or values outside the scale range
#> (`geom_text()`).

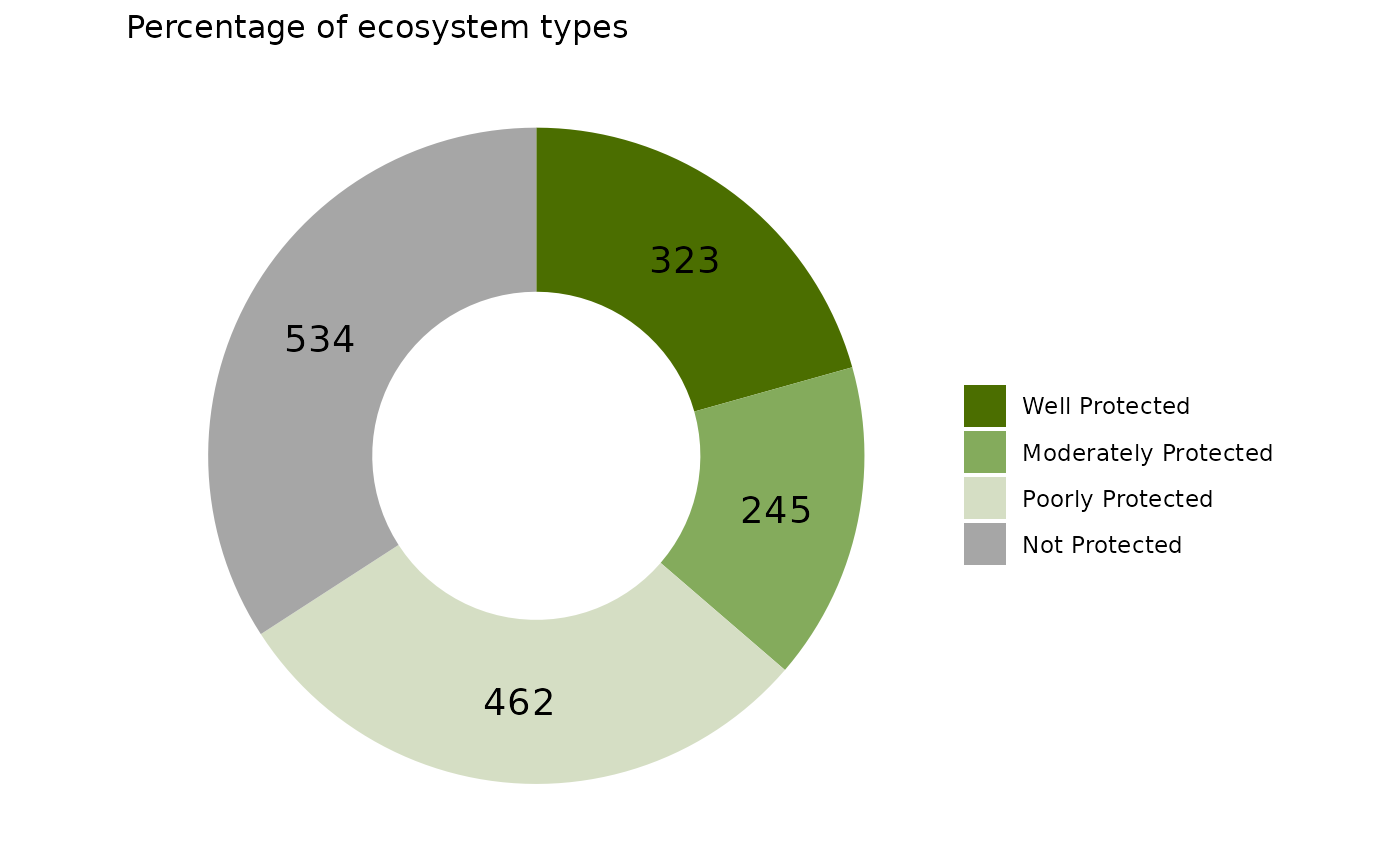

donut_plot <- nba_plot(NBA_example_pro_data,
`OVERALL types`,
2:5,
CHRT = "donut",
NUM = TRUE,
LAB = "Percentage of ecosystem types",
GRP = FALSE,
SAVE = NULL)
donut_plot
